EDS 232

Lesson 7

Principal Component Analysis

In this lesson


  • Principal Component Analysis (PCA) as a technique for dimensionality reduction
  • Principal components as directions of maximum variance in multivariate data
  • Principal Component Regression (PCR): fitting a regression model on PC scores instead of the original predictors

Motivation

To capture the most krill in a single pass, how would you align yourself?

Artwork by Dr. Allison Horst

Imagine a whale shark approaching a dense cluster of krill. To capture the most krill in a single pass, you would align yourself with the direction of greatest spread in the krill cloud: the axis along which krill are most dispersed.

The core idea


The same intuition applies to data. When we have many correlated predictors, some directions capture a great deal of the variation while others capture very little.


Principal Component Analysis (PCA) finds those directions of greatest variation automatically.


With many predictor variables, PCA simplifies our view of the coordinate system to capture as much about the data as possible in as few dimensions as possible.

Axes, coordinates, and projections

Original coordinate system


We are in control of which axes we use to represent our data.

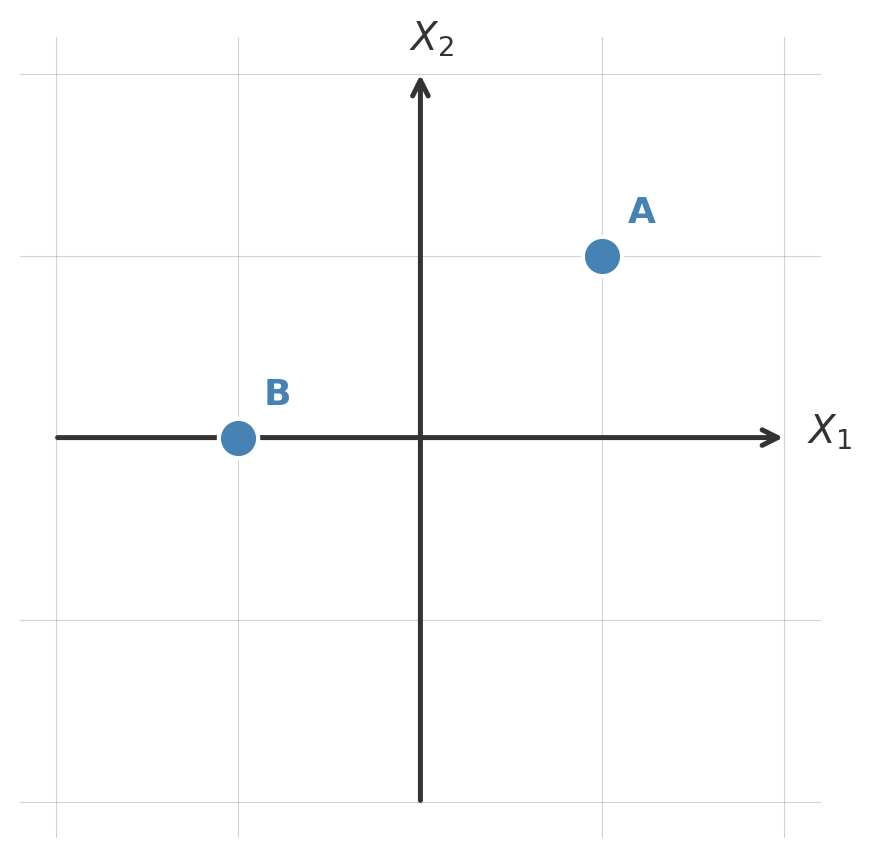

Starting with the usual axes \(X_1\) and \(X_2\), our two points have coordinates:


Point Coords in \(X_1, X_2\)
A (1, 1)
B (−1, 0)

A new coordinate system

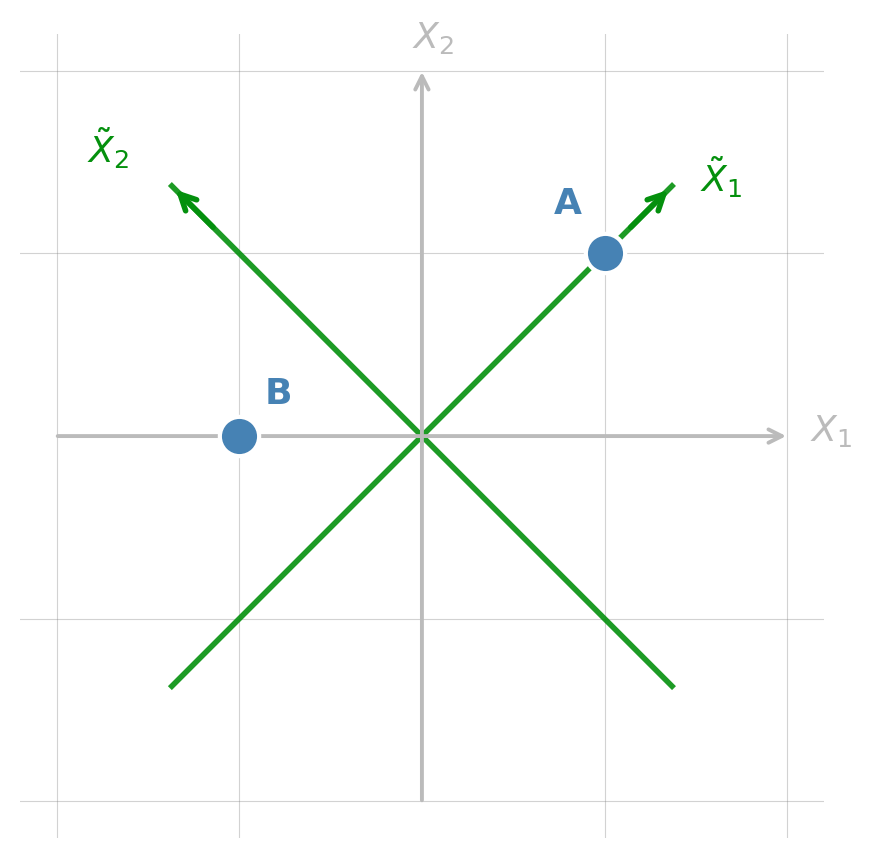

Using a different set of axes \(\tilde{X}_1\) and \(\tilde{X}_2\) (rotated 45°), the same points get new coordinates:


Point Coords in \(X_1, X_2\) Coords in \(\tilde{X}_1, \tilde{X}_2\)
A (1, 1) (\(\sqrt{2}\), 0)
B (−1, 0) (−0.71, 0.71)


Same points, just different ways of representing them.

Projecting onto an axis


Projecting onto a coordinate axis means keeping only the coordinate along that axis and dropping the rest.

Projecting A and B onto \(\tilde{X}_1\):

Point Projection onto \(\tilde{X}_1\)
A proj(A) \(= \sqrt{2}\)
B proj(B) \(= -0.71\)

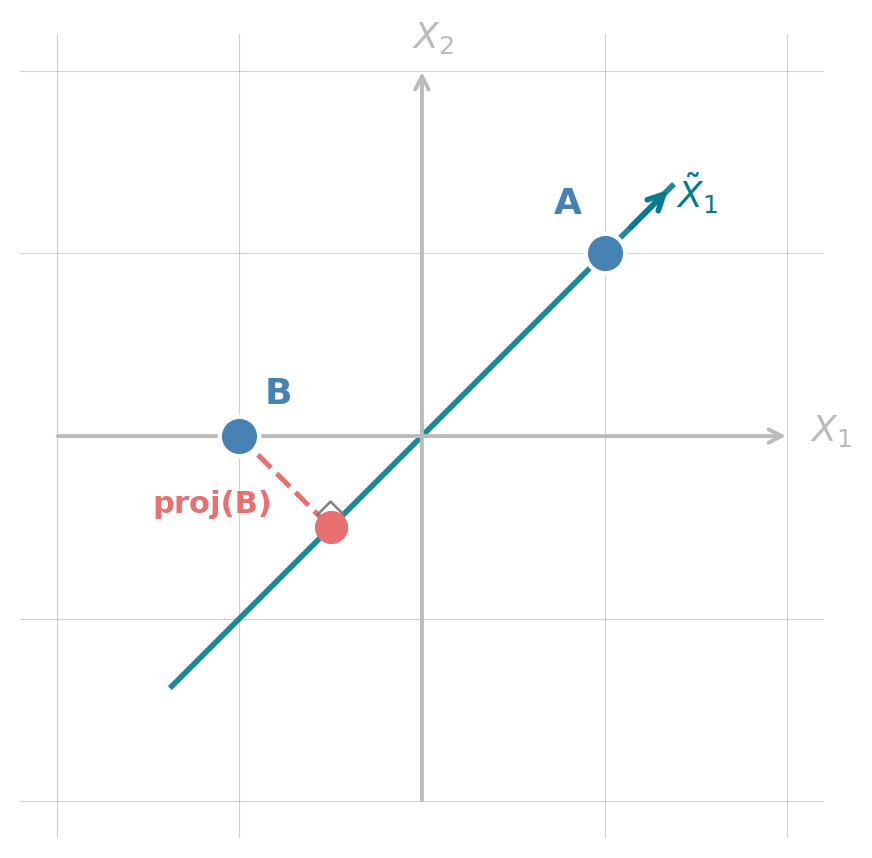

The dashed red line shows the perpendicular drop from B to its projection on \(\tilde{X}_1\).

We will use the idea of changing axes and projecting throughout.

Principal components

What are principal components?

Principal Component Analysis (PCA) creates a new set of axes/coordinates so that:

  • PC1 points in the direction of maximum variance in the data
  • PC2 points in the direction of maximum remaining variance, orthogonal to PC1
  • PC3 is orthogonal to both PC1 and PC2, and explains the most remaining variance, and so on

There are always as many PCs as original variables.

If PC1 and PC2 explain most of the variance, we’d still see most of the important structure in our data using just those two.

This is the core idea of dimensionality reduction: converting complex multivariate data into fewer dimensions while retaining as much information as possible.

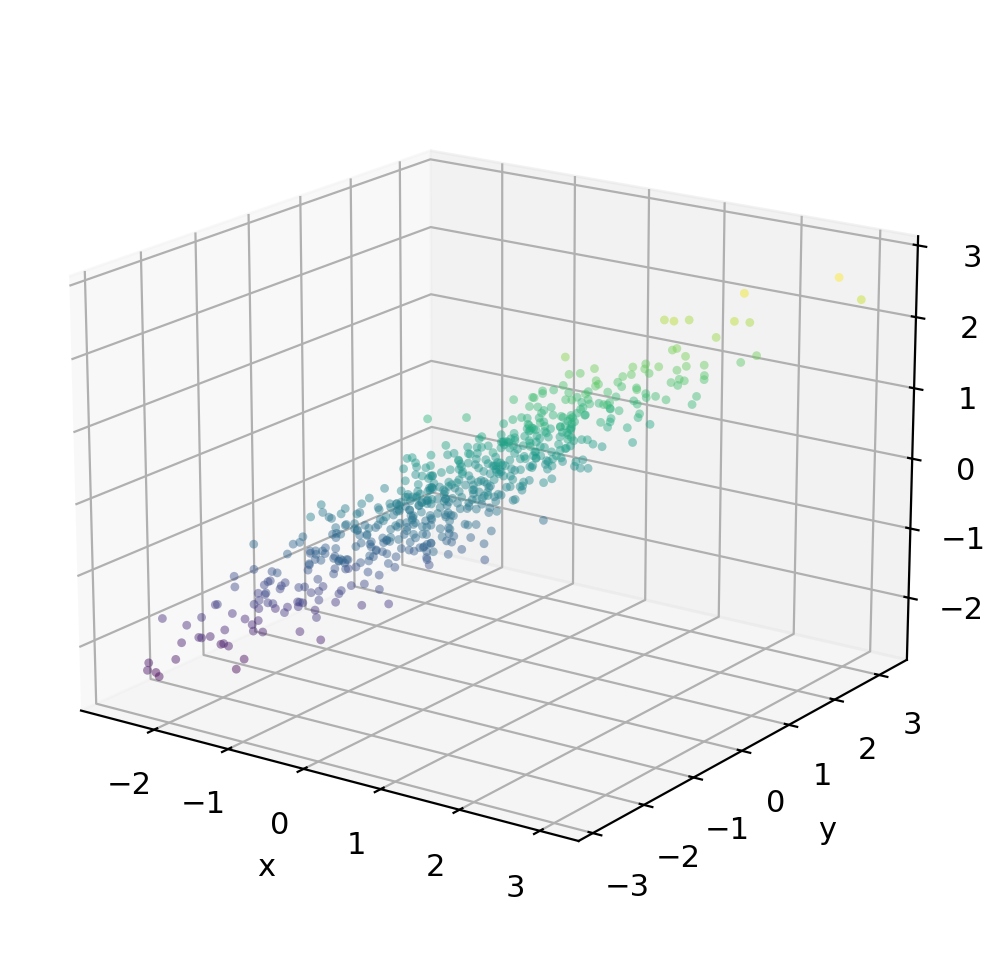

A 3D example: 600 pts from three correlated variables \(x\)/\(y\)/\(z\)

Most of the variation is concentrated along a single dominant axis — the data cloud is very elongated.

Check-in

Recall that PC1 will be an axis in the direction of maximum variance in the data. PC2 will be the direction of maximum remaining variance, orthogonal to PC1.


Where would you place PC1? What about PC2?

Identifying principal components

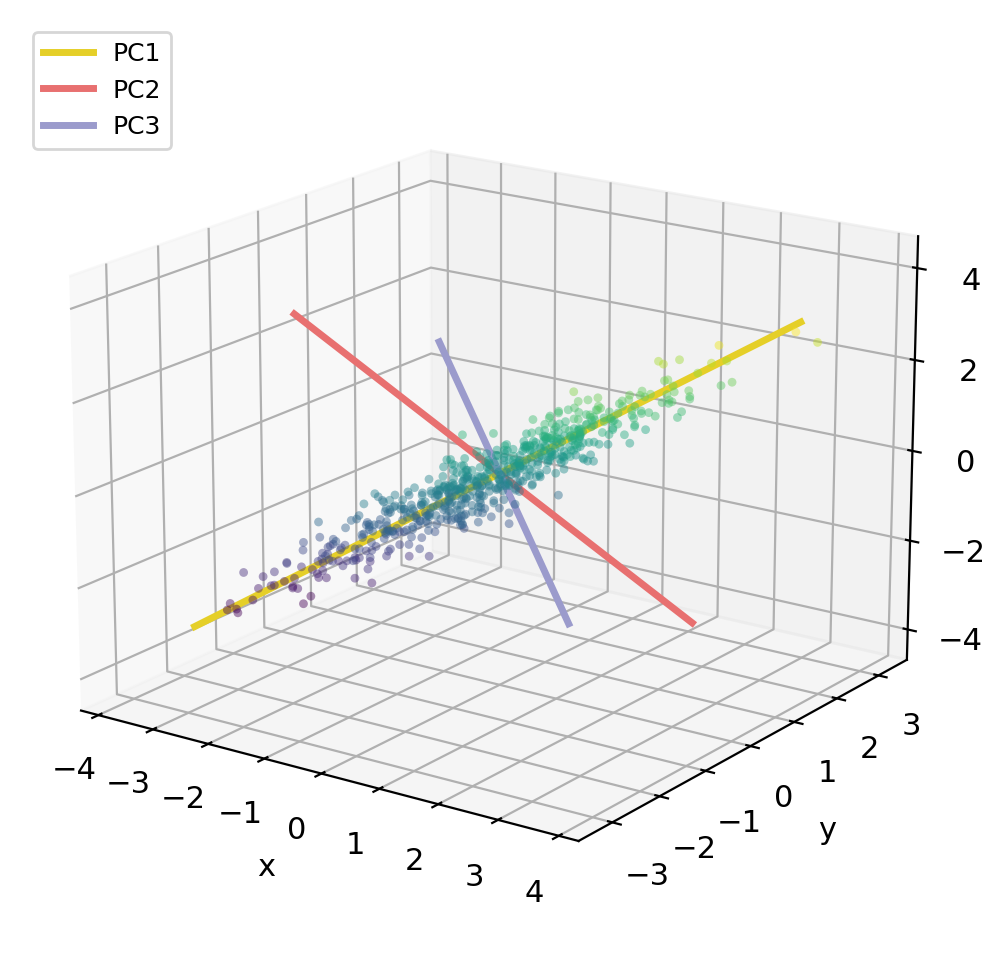

  • PC1 runs along the long axis of the cloud = the direction of greatest spread
  • PC2 is perpendicular to PC1 and captures the remaining spread
  • PC3 points through the thinnest dimension, almost no variance

PCA gives us a new coordinate system

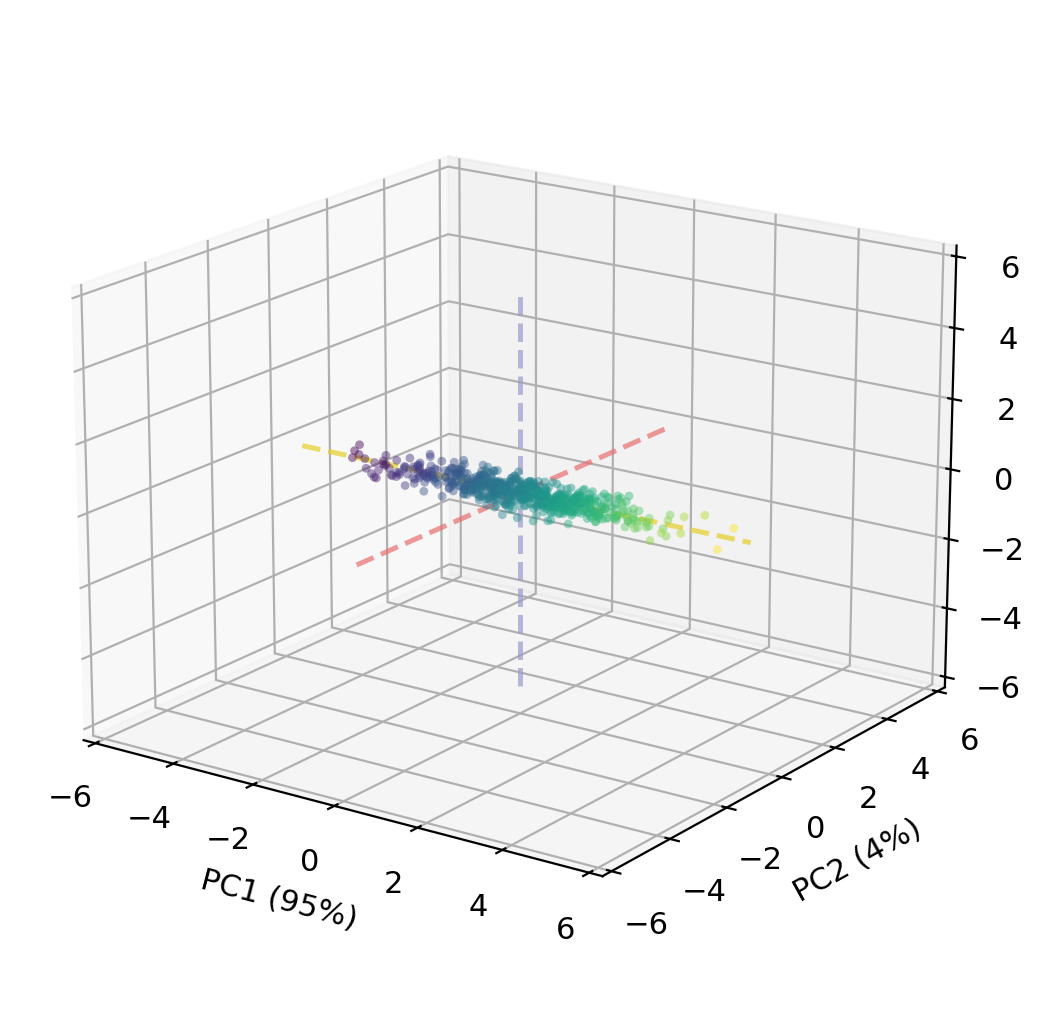

If we re-express every data point in PC coordinates (PC scores instead of \(x/y/z\)), the data cloud becomes axis-aligned.


Each data point \((x, y, z)\) gets a new coordinate — its scores — in the PC coordinate system.

Projecting to 2D: keeping PC1 + PC2

Because PC1 alone captures 95 % of the variance, dropping PC3 (which contains only 1.1 % of the variance) loses very little information:

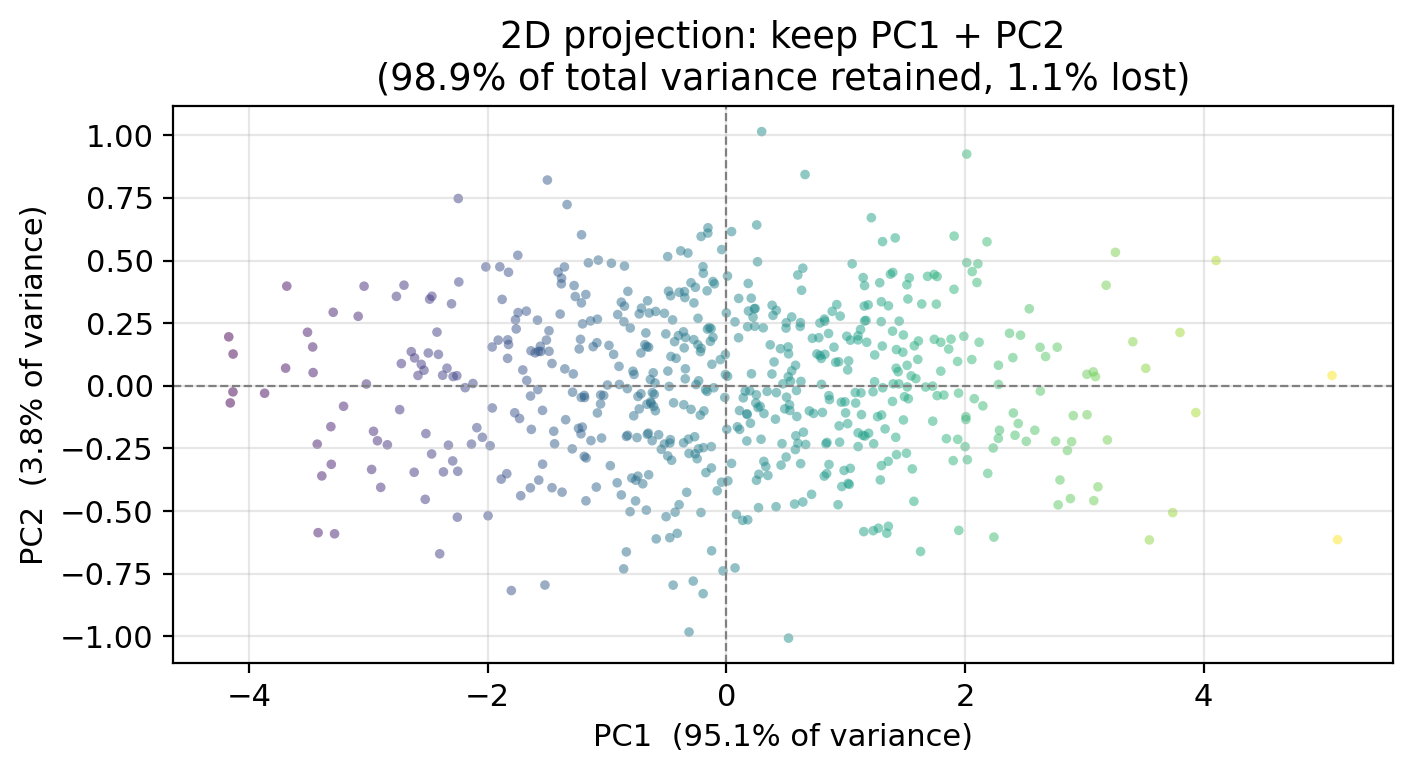

By projecting onto PC1 + PC2, we go from 3 dimensions to 2 while retaining 98.9 % of the total variance.

Proportion of variance explained

Proportion of variance explained (PVE)

Every PC captures a certain share of the total variance: this is its proportion of variance explained (PVE).

  • The PVE values always sum to 1 across all components
  • We are usually interested in how much variance is concentrated in the first few components

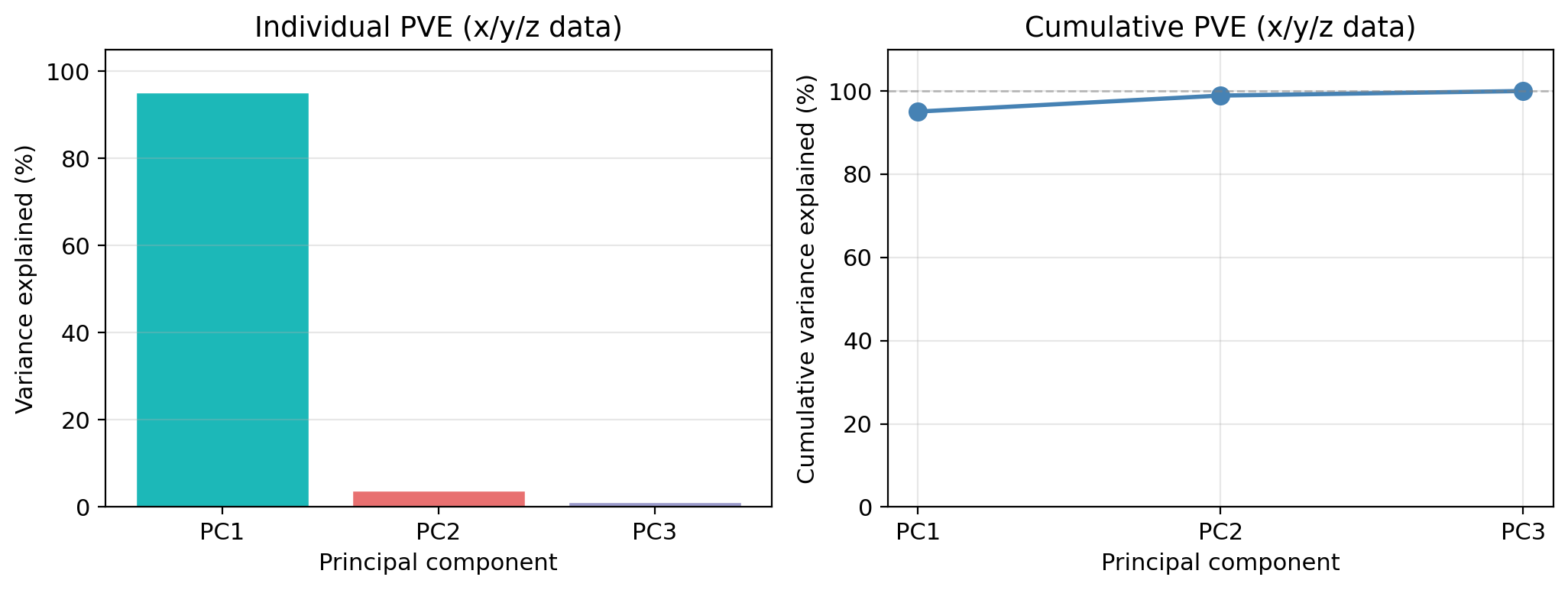

  • Use a scree plot (left-hand side plot) to visualize the PVE for each PC

PC1 alone captures 95.1 % of all variance.

How many components do we keep?

  • Keep enough components to explain 90–95% of total variance, or
  • Look for an “elbow” in the individual PVE bar chart where bars drop sharply

In this example: PC1 + PC2 together retain 98.9 %, so the 2D projection preserved the data structure well. We could have projected only onto PC1 too!

Principal Component Regression

Principal Component Regression

So far, PCA has been applied to the predictors only: we have not used the response variable \(Y\).


Principal Component Regression (PCR) connects the predictors and their PCs to the response:

Replace the original \(p\) predictors with \(M \leq p\) principal components, then fit OLS on the projected data.


The guiding assumption: the directions in which the predictors vary the most are often also the directions most strongly associated with the response.

Reasonable one in many real settings.

PCR: 3D example setup

Using our 3D \(x/y/z\) data, suppose we observe a response \(Y\). We generate it with the following formula:

\[Y = 2x + 2y + 2z + \varepsilon\]

So the true coefficients are 2 for all three predictors.

If we model \(Y\) using three predictors \(x\)/\(y\)/\(z\) and a standard MLR fit by OLS then, our model is:

\[\hat{Y} = \hat{\beta}_0 + \hat{\beta}_x \cdot x + \hat{\beta}_y \cdot y + \hat{\beta}_z \cdot z\]

and we get the coefficient estimates:

Predictor  OLS coefficient
        x            2.039
        y            1.884
        z            2.127

OLS intercept: -0.072   |   OLS R²: 0.944

PCR with M = 1 component

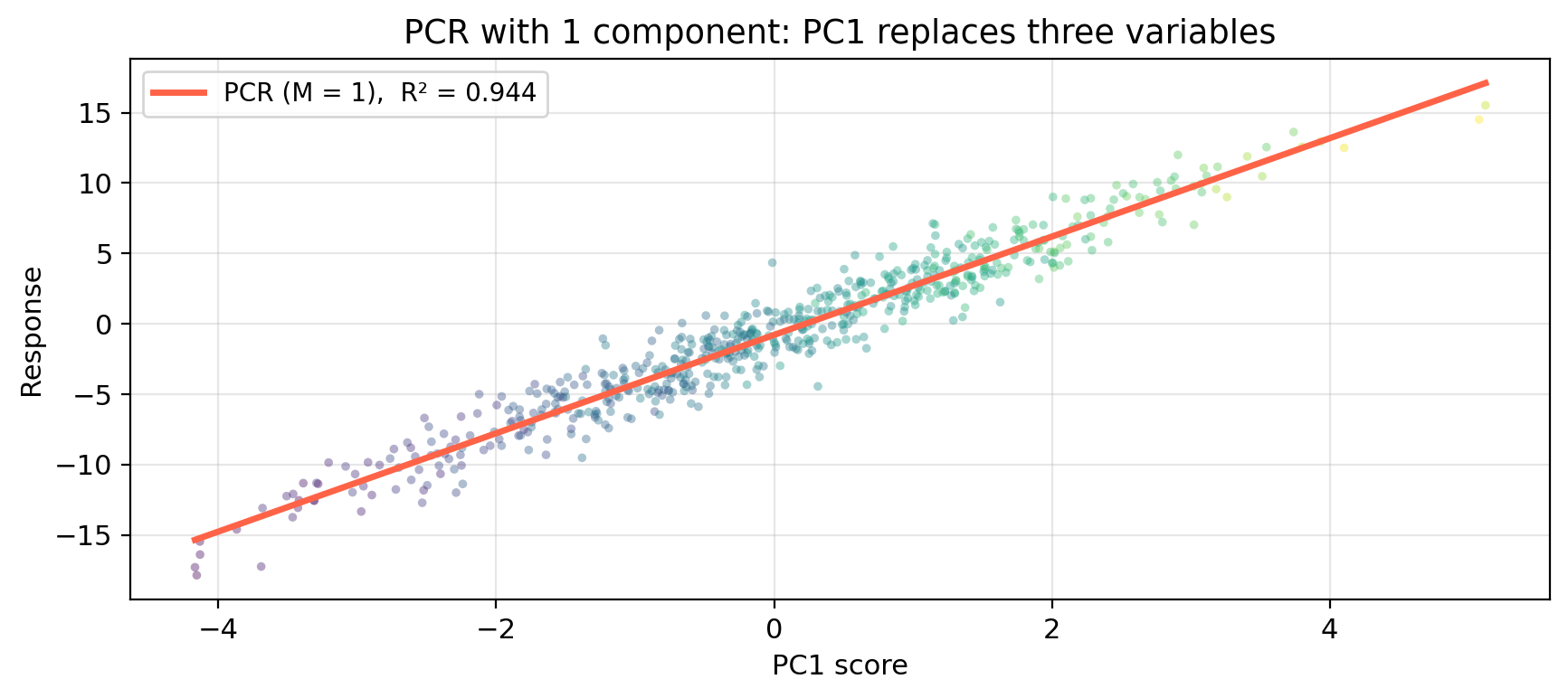

Since PC1 captures 95.1 % of the variance in \(x\), \(y\), \(z\), we can try replacing all three variables with just PC1.

Instead of three predictors, we fit a simple linear regression on PC1:

\[\hat{Y} = \hat{\alpha}_0 + \hat{\alpha}_1 \cdot \text{PC1}.\]

OLS vs PCR: train and test performance

                       Model  Parameters  Train R²  Test MSE
OLS  (3 predictors: x, y, z)           3     0.944     2.112
      PCR  (M = 1 component)           1     0.944     2.095
     PCR  (M = 2 components)           2     0.944     2.110


  • Train R²: a measure of how well the model fits the data it was trained on
  • Test MSE: a measure of how well the model generalizes to predict values in previously unseen data

What do these results tell you about where most of the predictive signal from this data is coming from?

Here PCR with just 1 component achieves nearly the same test MSE as OLS. This confirmis that almost all predictive signal lives in PC1!

General setup

PCR: general setup

We apply PCR in the context of multiple linear regression with \(p\) predictors \(X_1, \ldots, X_p\) and a response \(Y\):

\[Y = \hat{\beta}_0 + \hat{\beta}_1 X_1 + \cdots + \hat{\beta}_p X_p.\]

PCR works in four steps:

  1. Standardize the predictors (mean 0, SD 1)
  2. Compute the principal components of the standardized predictors
  3. Decide which PCs will be used to reduce dimensions
  4. Project each observation onto the first \(M\) components
  5. Fit ordinary least squares of \(Y\) on this new data

The key tuning parameter is \(M\):

  • When \(M = p\), PCR is equivalent to OLS (all components retain all information)
  • When \(M < p\), the model has fewer parameters: lower variance at the cost of some bias
  • \(M\) is chosen by cross-validation, just like \(\lambda\) for ridge and lasso

Exercise: meadow plant diversity

Meadow plant diversity dataset

We apply PCA and PCR to the dataset from the previous lesson:


  • 200 mountain meadow survey plots
  • 8 environmental predictors: precip, temp, forest_cover, soil_N, elevation, slope, aspect, canopy
  • Response: species_richness (plant species per 25 m² plot)

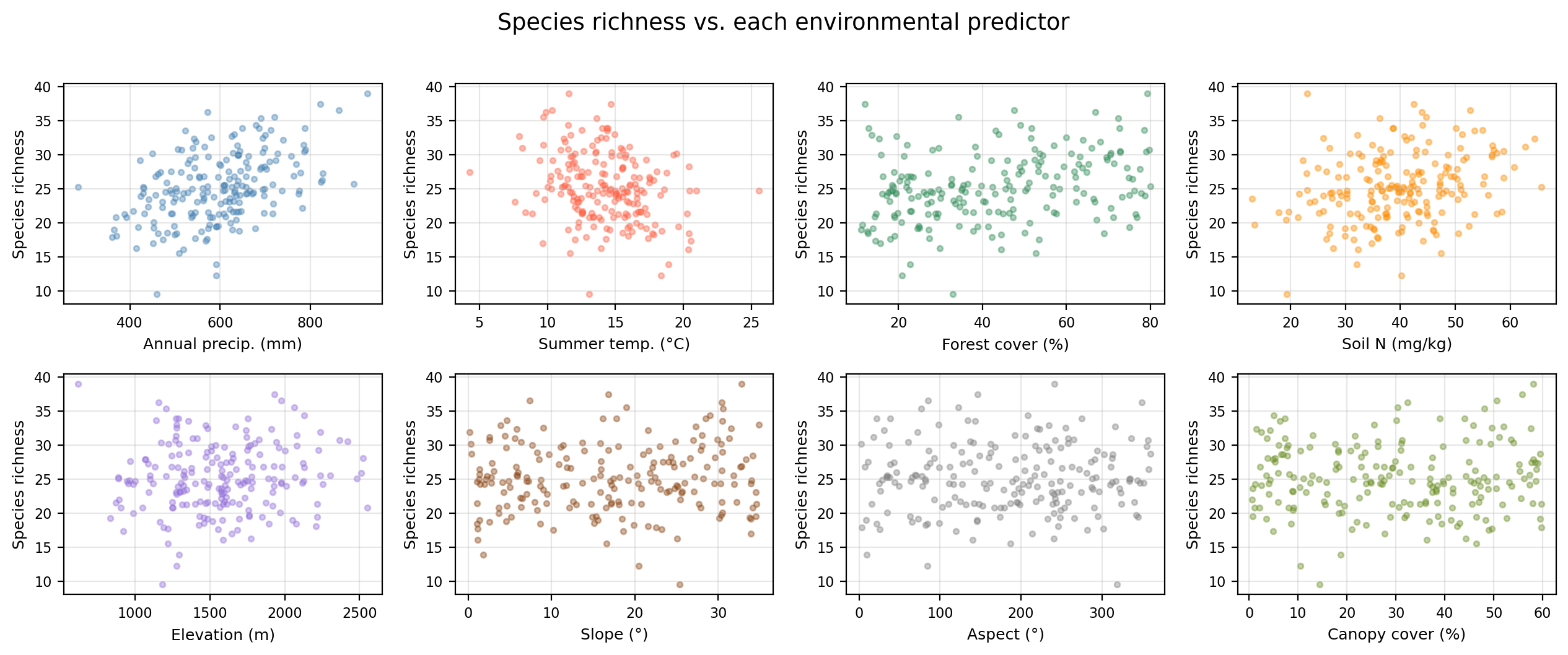

Data overview

True model: only precip, temp, forest_cover, soil_N, elevation, slope have non-zero coefficients

aspect and canopy are pure noise

Check-in

Explain to the person you are working with:

  1. how each of the PCs is computed and

  2. what is being depicted on each of the plots.

Check-in

Looking at the scree plot:

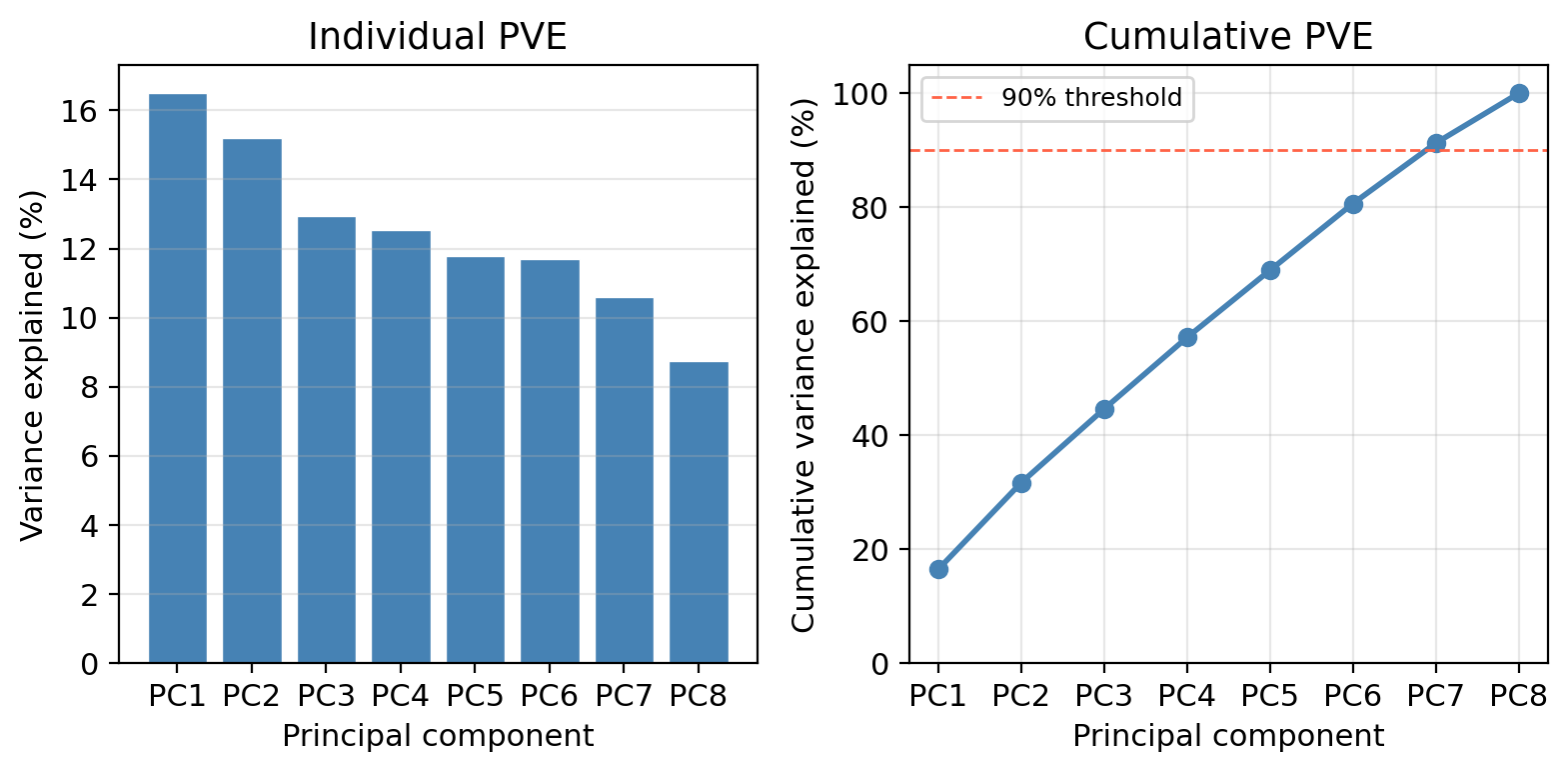

How many components are needed to explain at least 90% of the total variance in the 8 predictors?

Check-in

Looking at the scree plot:

How many components are needed to explain at least 90% of the total variance in the 8 predictors?

Seven components are needed to reach 90% cumulative PVE.

In this example the 8 predictors were generated independently, no single dominant direction captures most of the variance. The PVE is spread fairly evenly across components.

Check-in

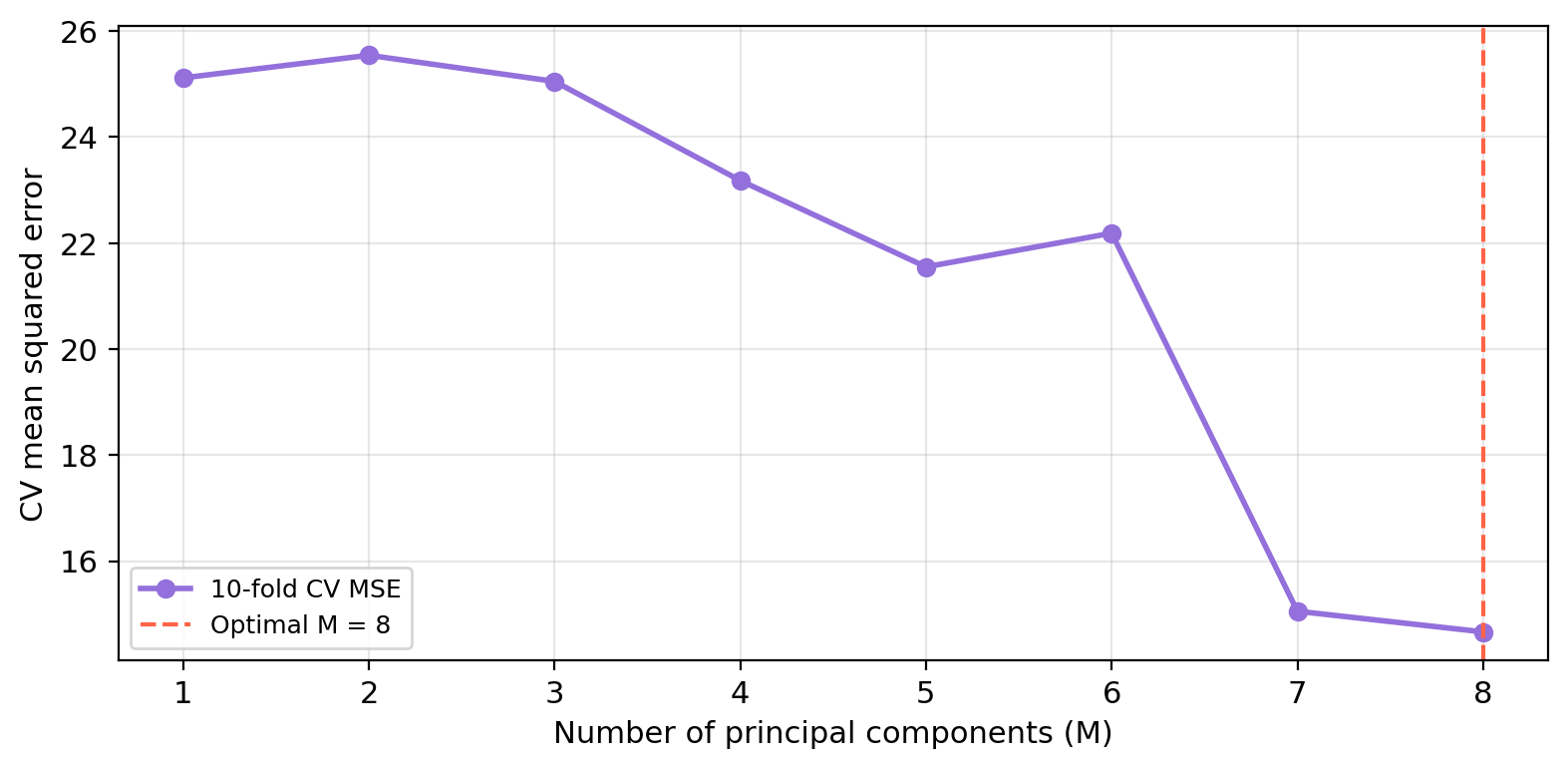

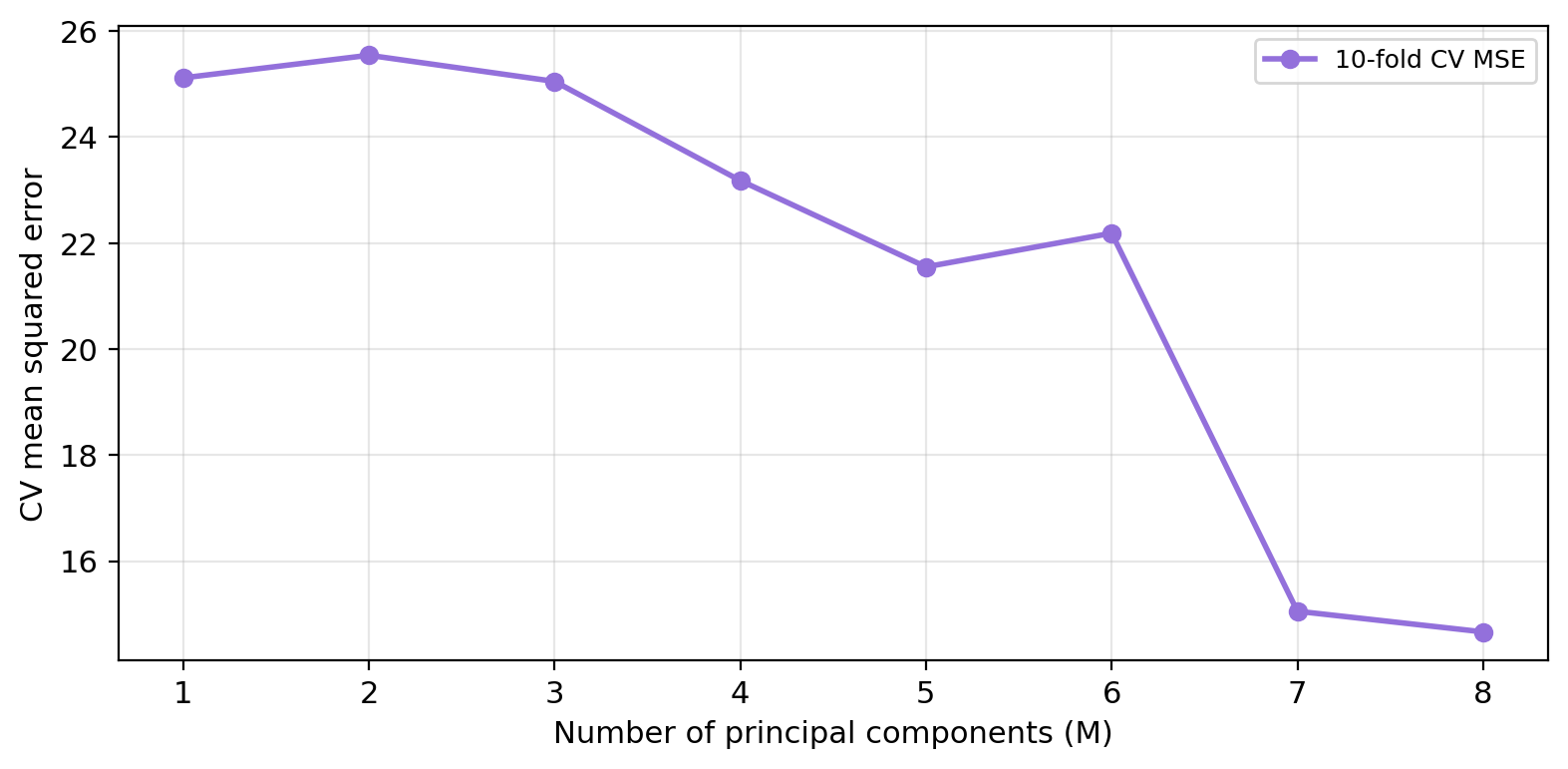

The figure below shows the 10-fold CV-MSE for each value of \(M\) from 1 to 8.

Explain to the person you are working with:

  1. Why are we interested in selecting only a few of the principal components?

  2. How is CV used to select the optimal number of components?

Check-in

The figure below shows the 10-fold CV-MSE for each value of \(M\) from 1 to 8.

  1. What is the optimal number of components selected by cross-validation?

  2. How does this number of components relate with the OLS regression?

Check-in

The figure below shows the 10-fold CV-MSE for each value of \(M\) from 1 to 8.

  1. What is the optimal number of components selected by cross-validation?

  2. How does this number of components relate with the OLS regression?

  1. The optimal \(M\) is 8 — retaining 8 component(s) gives the best out-of-sample prediction accuracy.

  2. PCR at \(M = p\) (number of predictors) is identical to OLS, and their CV-MSEs are equal.

Check-in: comparing PCR, ridge, and lasso

                Method CV-MSE
OLS (all 8 predictors) 14.664
           PCR (M = 8) 14.664
  Ridge (CV-optimal λ) 14.628
  Lasso (CV-optimal λ) 14.496
  1. Which method performs best? Does this make sense given the structure of the true data-generating model?
  2. What is a limitation of PCR compared to lasso?

Check-in: comparing PCR, ridge, and lasso

                Method CV-MSE
OLS (all 8 predictors) 14.664
           PCR (M = 8) 14.664
  Ridge (CV-optimal λ) 14.628
  Lasso (CV-optimal λ) 14.496

  1. Lasso tends to perform best because it can exactly zero out the two truly irrelevant predictors (aspect and canopy), directly matching the structure of the true model.

  2. PCR cannot perform variable selection and lasso can. PCR is still taking into account all variables when forming linear combinations of the predictors to create the principal components. PCR works best when the signal is spread across many predictors that may have correlation across them.
